Android 7.0 High Performance Wireless Barcode scanner 1D 2D Bluetooth Handheld Data Terminal Rugged PDA

1 order
View cart→
Product Details
Customer Reviews (0)
Item Specifics
Shipping & Payment
Product Details

Free Shipping High Performance Wireless Barcode scanner 1D 2D Bluetooth Android 7.0 Handheld Data Terminal Rugged PDA

Standard Configuration:

Android7.0+4” Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+1D/2D+3G/4G+GPS+Camera+Free SDK
Option :NFC ,LF(125K/134.2K)
( If you need the optional function, please contact us )

Standard Accessories:

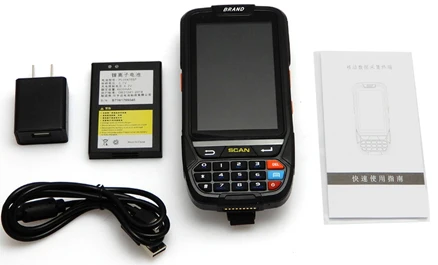

Standard: Handheld POS Terminal 1 Pcs, Battery1pcs, Usb data cable1pcs, Charger 1pcs, User Manual 1pcs

Optional: Extra Charge Cradle

Standard Features:

-8.0M mega pixel camera

-Multiple languages

-Support Google Play Store

-Compact and Portable Ergonomic Design with wrist strap

-Safe OS (Android 7.0) Highly optimized Android operating system

-High capacity 4000mA large capacity battery for critical requirements

-Pogo Pin interface for convenient charging with optional charge cradle

-Industrial rugged design, waterproof and protection grade(IP65)

Main Parameters:
Model Name: Touch Screen Android 7.0 PDA
CPU ARM Cortex-A53 64 bit quad-core(1.3GHz)
Memery+Flash 2G+16G NAND Flash,micro-TF up to 32G
Display 4.0” QVGA touch panel TFT-LCD Display(480X800)
Wireless WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS
Operating System Android 7.0
Interface Type: USB2.0 Device
Scanner: 1D/2D Scanner
Dimension: 152mm×77mm×29mm
Weight: <500g
Battery: 3.7V 4,000mAh Li-battery
Optional(add money) Charge Cradle, NFC(HF), RFID(UHF)

    Physical Parameter
    Dimensions 152mm(L)×77mm(H)×29mm(W)
    Weight <500g
    Display Screen Color 4.0 inch QVGA imitative glass durable touch screen
    TFT-LCD, 650000 colors, 480*800 (QVGA size)
    The brightness of LED Backlight is adjustable
    Expand Port SIM card, Micro SD (TF) Card
    Communication Interface USB2.0 Device,
    Input Mode Standard Stylus, Handwriting, touching input or keyboard input
    Battery Capacity Rechargeable Li-polymer Battery 3.7V 4000mAh Optional
    Frequency 8 1W speaker
    Buttons 21pcs soft silicon key
    Data Communication
    WI-FI Support IEEE802.11b/g/n protocol, it needs effective wireless LAN signal cover
    FDD-LTE 4G Uplink: 1920MHZ-1980MHZ; Downlink: 2110MHZ-2170MHZ
    Uplink: 1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ
    Uplink: 2496MHZ-2690MHZ; Downlink: 2496MHZ-2690MHZ
    WCDMA 3G Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ
    Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ
    GSM 2G 850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ
    900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ
    1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ
    1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ
    Bluetooth Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m
    Operating Environment
    Operating Temperature —20C to 50C
    Storage Temperature —25C to 70C
    Environment Humidity 5%RH–95%RH(no condensation)
    Drop Specifications 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
    Roll Specifications 1000 times/0.5m, roll on 6 sides contact area
    Sealed Environment IP65
    Development Environment
    Operating System Android 7.0
    SDK exclusive use software development kit
    Supported Language JAVA
    Development Tool Eclipse
    1D Laser Scanner
    One dimensional laser scanner Mingde966(Standard)
    Symbol 955, HoneywellN4313,
    Resolution 4Mil minimum width
    Ambient Light 10000ft.candles(107640 lux)
    Scanning Speed 104(±)12/sec (both way)
    Scanning Angle 47o±35o(Standard) / 35o±3o(narrow angle)
    Support Bar Code Type UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5,
    Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS
    2D CMOS (Optional)
    CMOS Scanner Newland 3096(Standard)
    The Sensor Resolution 752(level)×480(vertical)pels(gray level)
    Ambient Light All dark 9000ft.candles/96900 lux
    Focus element (VLD) 655nm ± 10nm
    Support bar code type PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix,
    QR code, Micro QR code, Aztec, MaxiCode;
    Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal,
    JapanPostal Dutch Postal (KIX)3
    NFC&HF 13.56MHz;ISO14443A/B protocol
    UHF 902Mhz – 928Mhz 、865MHz – 868MHz
    Camera Hd 8 million pixels, with LED, automatic focusing
    GPS Support A-GPS
    Android 7.0 System
    CPU ARM Cortex-A53 64bit Quad-Core 1.3G
    RAM 2G RAM
    Flash ROM Standard 16G NAND Flash Storage
    Micro SD/TF port (Max up to 32G)

    PDA Barcode scanner 1D 2D Blutooth Android PDA Handheld Terminal Rugged PDA Wireless Mobile

    1D Bar code Scanner Data Collector

    Item Specifics
    Brand Name:
     Barcode Scanner
    Optical Resolution:
    Scan Element Type:
     1D Laser 2D CCD
    Scan Breadth:
     1D 2D QR HONEYWELL Scanner optional PDA Handheld terminal rugged PDA
    Scan Speed:
     200 scans/second
    Interface Type:
    Model Number:
    Colour Depth:
     48 Bit
    Product Type:
     Bar Code Scanner
    Scanning Light Source:
     Laser Light
    Time to market:
     ARM Cortex-A53 64 bit quad-core(1.3GHz)
     2G+16G NAND Flash,micro-TF up to 32G
    Operating System:
     Android 7.0
     3.7V 4,000mAh Li-battery
     5 Inch
     4G,WIFI, Bluetooth 4.0+EDR/3.0+HS/4.1+HS
    Item name:
     wireless Andorid 7.0 Touch Screen Android PDA 1D/2D barcode scanner
     4.0'' QVGA touch panel TFT-LCD Display
    Model Number:
     Portable data terminal PDA barcode scanner
    1D Scanner:
    2D Scanner:
     Newland 3096(Standard), HONEYWELL N3680
     QR scanner and NFC HF UHF RFID
